A $13.1 million Red Hat Amphitheater relocation at 205 W Lenoir Street in downtown Raleigh requires five low voltage systems — AV, structured cabling, access control, CCTV, and fire alarm — across a 6,000+ seat outdoor venue and 23,102 SF support building. The Live Nation-operated amphitheater is the enabling move for the Raleigh Convention Center expansion. Estimated LV scope: ~$780,000 by 2026 concert season.
$13.1 million Red Hat Amphitheater relocation at 205 W Lenoir Street in Raleigh, NC requires five low voltage systems across a 6,000+ seat venue and 23,102 SF support building, creating an estimated $780,000 low voltage opportunity ahead of the 2026 concert season.
Project Overview

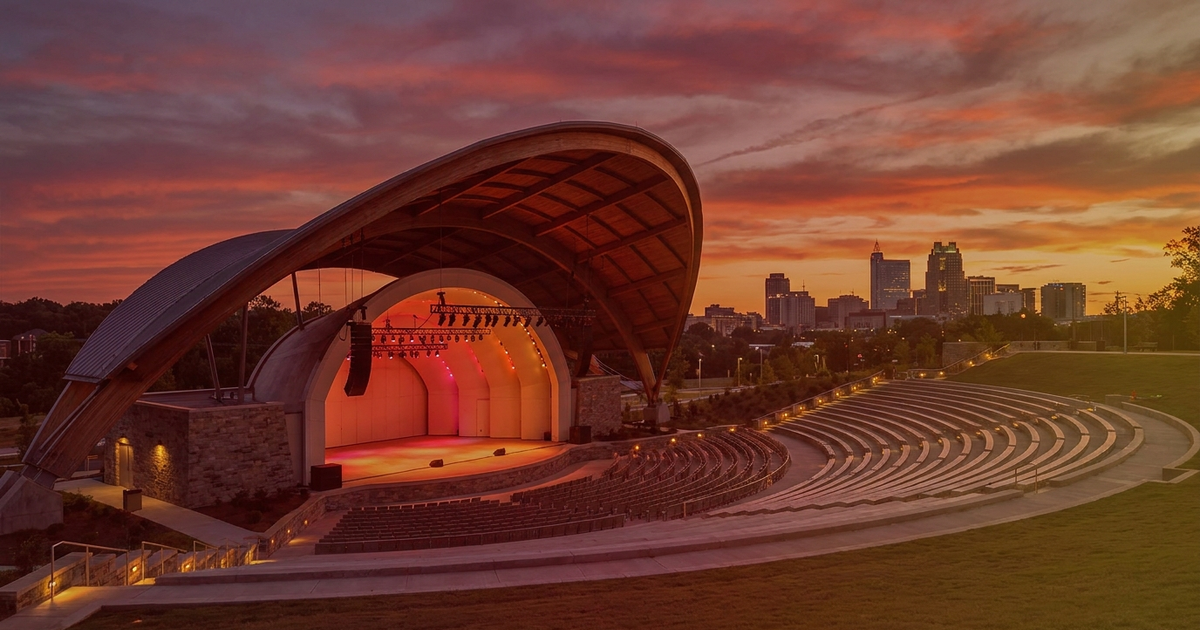

The Red Hat Amphitheater is moving one block south. According to permit records filed with Raleigh Building Permits, the City of Raleigh has greenlit a $13,085,057 construction project at 205 W Lenoir Street to relocate Live Nation's downtown concert venue from its longtime home at 500 South McDowell Street. The new site will include a 6,000+ seat outdoor amphitheater plus a 23,102 SF support building, and the LV scope packages structured cabling, AV, CCTV, access control, and fire alarm into both the performance space and the support facility.
The relocation is the enabling move for the broader Raleigh Convention Center expansion. South Street between Dawson and McDowell has permanently closed to clear the original amphitheater parcel for new flexible event space, rooftop terraces, and outdoor venues attached to RCC. Construction is sequenced to deliver the new amphitheater for the start of the 2026 concert season — meaning this LV scope is on a hard, public-facing deadline.
| Project | Red Hat Amphitheater Relocation |
| Location | 205 W Lenoir Street, Raleigh, NC 27601 |
| Total Project Value | $13,085,057 |
| Capacity / Square Footage | 6,000–6,500 seat amphitheater + 23,102 SF support building |
| Project Type | Outdoor Amphitheater / Mass-Assembly Venue |
| Status | Active — opening targeted for 2026 concert season |
| LV Score | 8/10 |
| Source | Raleigh Building Permits |
Key Players
This is a public-owned, privately-operated venue with a clean separation between owner, operator, and construction lead — all publicly disclosed in City Council documents and venue press materials.
| Role | Company | Details |
|---|---|---|
| Owner | City of Raleigh | Public owner of the venue. The amphitheater move is part of the city's Convention Center expansion program, with City Council approval and city-funded construction. |
| Operator | Red Hat Amphitheater (Live Nation) | Live Nation operates Red Hat Amphitheater as a major Triangle-region concert venue. The 2026 season schedule is already publishing dates at the new Lenoir Street location. |
| General Contractor | Clancy & Theys Construction Co. | Raleigh-based GC of record, delivering the amphitheater and support building under a public-works construction contract. |
| Civil / Enabling Work | Conti Civil | Civil contractor handling enabling utilities and site work at 205 W Lenoir Street, prepping the parcel for vertical construction. |
Low Voltage Systems Breakdown
Outdoor amphitheaters are weather-exposed, mass-assembly venues with broadcast-grade AV, public-safety security, and time-pressure event ops. The five required LV systems map directly to that profile — and every one of them has to be IP67/outdoor-rated and tested against humid Carolina summers.
| System | Category | Scope Description | Complexity |
|---|---|---|---|
| AV | Performance / Broadcast | House FOH and monitor positions, stage I/O backbone, AV-over-IP routing, broadcast tie-in panels for touring productions, video wall infrastructure, and digital signage at the support building. Single largest line item in the LV stack for an amphitheater. | Very High |
| Structured Cabling | Data / Voice | Outdoor-rated Cat6A and OS2 fiber backbone serving FOH, stage, dressing rooms, ticketing, F&B outlets, and broadcast trucks. IP67-rated outdoor enclosures and pathway hardening for weather exposure. | High |
| Access Control | Security / Operations | Card and mobile credential readers at staff entries, BOH corridors, dressing rooms, and FOH/stage zones. Federation with city event ops and Live Nation enterprise security platform. | High |
| CCTV | Security | Multi-hundred-camera IP video coverage of perimeter, entry queueing, lawn, FOH, stage, BOH, and concession lines. Long retention windows for crowd-management liability and federation with Raleigh Police event-night ops. | High |
| Fire Alarm | Life Safety | Voice-evacuation addressable system covering the 23,102 SF support building, with mass notification tie-in to amphitheater PA for outdoor-area emergencies. NFPA 72/101 compliance plus Raleigh Fire AHJ coordination. | High |
Estimated Low Voltage Value
Industry benchmarks for outdoor amphitheaters and mass-assembly venues place low voltage and technology scope at roughly 5–7% of total construction value, weighted toward the high end because of broadcast-grade AV and outdoor hardening. Applied at 6% to the $13.1M project, the estimated low voltage contract value lands near $780,000.
| Total Project Value | $13,085,057 |
| Estimated LV Percentage | 6.0% (mass-assembly venue, AV-heavy) |
| System Count Multiplier | 1.0x (5 systems, weather-hardened) |
| Estimated LV Contract Value | ~$780,000 |
Realistically, AV scope alone (FOH, stage I/O, broadcast tie-in, video walls, support-building digital signage) likely claims $350–450K. Outdoor structured cabling backbone for an amphitheater of this scale runs $150–200K. Access control, CCTV, and fire alarm round out the package. For a Triangle-region LV integrator with mass-assembly experience, this is a clean six-figure project on a hard public-facing deadline.
Skills and Certifications Required
Public-works mass-assembly venues are unforgiving on credentialing, prevailing wage compliance, and on-time delivery. Every system on this project must be inspected, commissioned, and signed off well before the first ticketed concert.
| System | Key Certifications | Critical Skills |
|---|---|---|
| AV | AVIXA CTS-D, CTS-I, manufacturer cert (Crestron, Extron, Dante, QSC, L-Acoustics, d&b) | Outdoor AV-over-IP backbone, FOH integration, broadcast tie-in, video wall infrastructure, touring-production interfaces |
| Fire Alarm | NICET Fire Alarm Level II+, NC Fire Alarm Contractor License | NFPA 72 compliance, voice-evac in support building, mass notification tie-in, Raleigh Fire AHJ coordination |
| Structured Cabling | BICSI RCDD (design), BICSI INSTC/INSTF, manufacturer cert (Panduit, CommScope, Belden) | Outdoor-rated Cat6A and fiber, IP67 enclosures, pathway hardening, weather-exposed terminations |
| Access Control | Manufacturer cert (Genetec, Lenel, HID), PSP | Mass event lockdown logic, integration with Live Nation enterprise platform, BOH zoning |
| CCTV | Manufacturer cert (Avigilon, Axis, Genetec, Milestone) | Outdoor IP camera deployment, large-camera-count VMS, federation with city/police event ops |
North Carolina requires a state Low Voltage (LV) contractor license for systems work and a Fire Alarm Contractor (FA) license for fire alarm scope, both administered through the NC State Board of Examiners of Electrical Contractors. Contractors should verify their NC licensing is current and that field technicians can support a public-works delivery timeline tied to a published concert season opener.
Market Signal
The Red Hat Amphitheater relocation is one piece of a much larger downtown Raleigh capital cycle. The amphitheater move is the enabling project for the Raleigh Convention Center expansion, which itself is a multi-year, capital-funded program adding flexible event space, rooftop terraces, and outdoor venues. Combined with the Raleigh Police Department renovation at 111 W Hargett, ongoing downtown residential infill, and Triangle-wide tech-sector tenant build-outs, the city is in the middle of a sustained LV pipeline that runs from public-safety to performance venue to commercial office.
For Triangle and Raleigh-Durham LV contractors, the implication is direct: hitting the 2026 concert-season opening on the amphitheater positions a contractor to be considered for follow-on Convention Center expansion packages, future city venue refresh work, and the Live Nation enterprise vendor pool that touches every Red Hat show schedule renewal. Public-works execution on a deadline is a credentialing event in itself.
The broader signal: outdoor entertainment venues are getting reinvested in. After a decade of suburban shed-vs-club polarization, downtown amphitheaters with broadcast-grade infrastructure are coming back as anchor venues. Raleigh, Atlanta, and Nashville all have significant amphitheater scope active or recently completed. AV-heavy LV integrators with mass-assembly experience are the natural beneficiaries.
