$2.8M StrideCare Vascular & Podiatry ASC in Arlington Requires 6 Low Voltage Systems

$2.8 million StrideCare Vascular & Podiatry ambulatory surgery center in Arlington, TX requires six low voltage systems, creating an estimated $210,000 opportunity for contractors in the North Texas healthcare market.

Project Overview

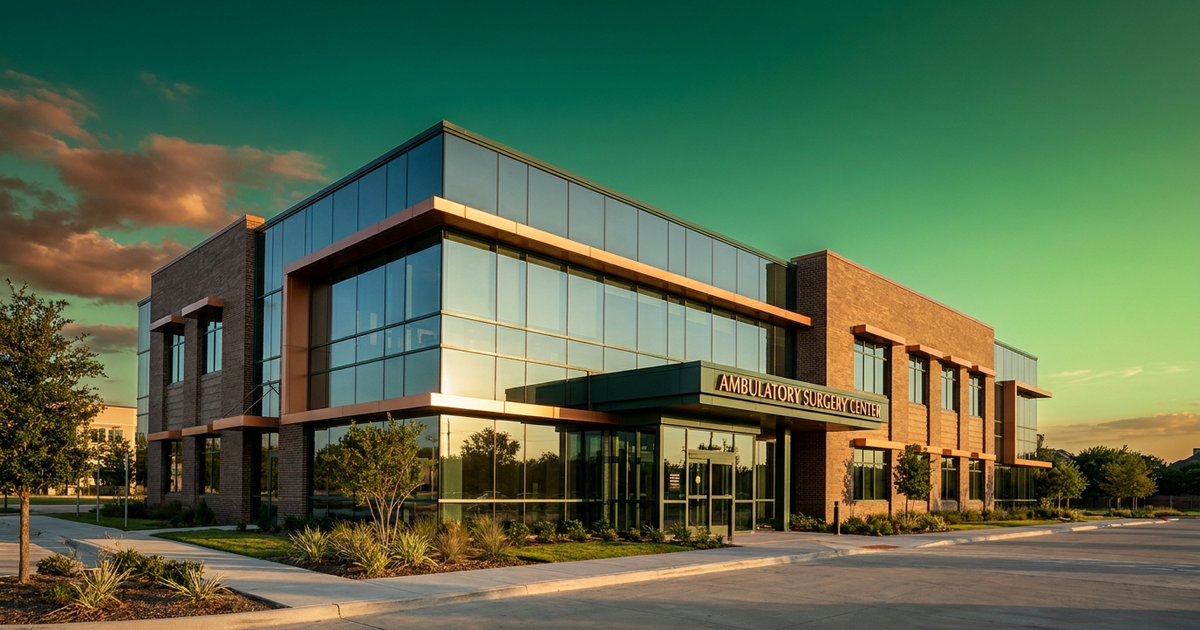

A $2.8 million ambulatory surgery center (ASC) buildout is wrapping up at 461 Highlander Boulevard in Arlington, Texas, anchoring StrideCare's continued expansion across the state. According to permit records filed with the City of Arlington, the project covers a 5,616 square foot finish-out of a new medical office shell, with mechanical, electrical, and plumbing scope packaged into one consolidated MEP permit and separate sub-permits required for fire alarm, fire sprinkler, and access control work.

Construction began on October 1, 2025 with a substantial completion target of February 28, 2026 — placing this project in its final inspection and commissioning window. The finish-out is the operating space for StrideCare Vascular & Podiatry, a Dallas-Fort Worth-headquartered vascular care network that has been aggressively scaling its ASC footprint across Texas.

Project	StrideCare Vascular & Podiatry ASC Arlington
Location	461 Highlander Boulevard, Suite 171, Arlington, TX
Total Value	$2,800,000 (MEP package)
Square Footage	5,616 SF finish-out
Project Type	Ambulatory Surgery Center (Vascular / Podiatry)
Status	Active — completion February 2026
LV Score	9/10
Source	Arlington TX Issued Permits

Key Players

This is a tenant finish-out inside a multi-tenant medical office building, with a clean separation of building owner, architect, and operating tenant. All three are publicly identifiable from project records and corporate disclosures.

Role	Company	Details
Operating Tenant	StrideCare Vascular & Podiatry	Dallas-Fort Worth-based vascular and podiatry network with multiple Texas ASCs and clinics. Acquired Texas Center for Interventional Surgery in 2023; announced Coastal Vascular partnership in July 2025.
Building Owner	Highlander MOB Partners LLC	Real estate ownership entity for the 461 Highlander Boulevard medical office building.
Architect	Covenant Architecture	Architect of record for the finish-out, registered on the project filing.

Low Voltage Systems Breakdown

The six required low voltage systems span life safety, security, communications, and clinical care — a tightly typical scope for an ambulatory surgery center where infection control, patient monitoring, and rapid clinical communication are non-negotiable.

System	Category	Scope Description	Complexity
Fire Alarm	Life Safety	Full addressable system covering pre-op, OR, recovery, and back-of-house. Healthcare-grade smoke and heat detection, area-of-refuge call points, and integration with the building's master fire alarm panel via separate sub-permit.	High
Access Control	Security	Card or mobile credential readers at the main entry, drug storage, IT/server room, and OR clean corridor. HIPAA-aware audit logging and after-hours zoning. Separate panic hardware permit required.	Medium
Structured Cabling	Data / Voice	Cat6A backbone supporting EHR workstations, anesthesia carts, vascular imaging modalities, and biomedical device connectivity. Fiber uplink to the building MDF and redundant pathways for OR-side equipment.	Medium
CCTV	Security	IP cameras at entrances, waiting room, drug storage, and corridor sightlines. NVR storage sized for healthcare retention requirements and integration with access control event tagging.	Medium
AV	Communications / Clinical	Procedure room imaging displays, conference and consult-room AV, digital signage at check-in. Integration with vascular ultrasound and fluoroscopy output for physician review.	Medium
Nurse Call	Clinical Communications	Pre-op and post-op bay call stations, OR staff-assist call points, and clean/dirty workflow indicators. UL 1069 listed system with code-required documentation for healthcare AHJ inspection.	High

Estimated Low Voltage Value

Industry benchmarks for ambulatory surgery centers and finish-out healthcare projects place low voltage and technology scope at roughly 7–8% of total construction value. Applied to the $2.8 million MEP envelope on this project, the estimated low voltage contract value lands near $210,000 — a credible mid-six-figure opportunity for a single qualified contractor or a coordinated split between life-safety and IT/security trades.

Total Project Value (MEP)	$2,800,000
Estimated LV Percentage	7.5%
System Count Multiplier	1.0x (6 systems, on benchmark)
Estimated LV Contract Value	$210,000

The breakdown likely skews toward fire alarm and nurse call as the highest-dollar line items because both carry healthcare-grade certification and code obligations. Structured cabling typically accounts for the next largest share given the imaging and EHR connectivity needs of a vascular ASC. Access control, CCTV, and AV round out the remainder. For a single-shop low voltage contractor with NICET and BICSI bench, this is the kind of project that fits cleanly into a 90-day execution window. For specialty trades, it is a clean carve-out of one or two systems.

Skills and Certifications Required

An ASC finish-out is unforgiving on credentialing — both the fire alarm and nurse call systems require listed equipment, certified technicians, and AHJ-stamped documentation before the surgery center can open for procedures.

System	Key Certifications	Critical Skills
Fire Alarm	NICET Fire Alarm Level II+, Texas State License	NFPA 72 compliance, SLC/NAC wiring, AHJ coordination, healthcare occupancy detection design
Nurse Call	Manufacturer cert (Rauland, Hill-Rom, or Jeron), UL 1069 familiarity	Pre/post-op bay wiring, staff station programming, integration with EHR and code blue workflows
Structured Cabling	BICSI INSTC/INSTF, RCDD (design)	Cat6A termination, fiber splicing, Fluke DSX certification, healthcare cable management
Access Control	Manufacturer cert (Genetec, Lenel, HID), Texas low voltage license	Door hardware, IP networking, HIPAA-aware audit trails, panic hardware tie-ins
CCTV	Manufacturer cert (Axis, Avigilon, Milestone)	PoE design, healthcare camera placement, NVR retention sizing
AV	AVIXA CTS, manufacturer cert (Crestron, Extron, QSC)	Procedure room display integration, vascular imaging display tie-in, control programming

Texas requires a state-issued Low Voltage Technician License (LVT) or Fire Alarm Planning Superintendent (FAPS) registration depending on system, both administered through the Texas Department of Licensing & Regulation. Contractors should verify their TDLR license is current and that any subcontractors performing fire alarm work hold the appropriate FAPS or Fire Alarm Technician registration before bidding.

Market Signal

This Arlington project is not an isolated permit — it is one node in a deliberate, well-funded Texas expansion by a private-equity-backed vascular care network. StrideCare also has a separate $2.8 million ASC opening at 6800 Weiskopf Avenue in McKinney, Texas, with substantial completion targeted for June 2026. Two $2.8 million ASC finish-outs at the same scope from the same operator inside a six-month window is not coincidence — it is a productized rollout.

For low voltage contractors covering DFW and adjacent Texas metros, the implication is concrete: when an outpatient care brand standardizes its design and packages each location as a similarly-sized MEP buildout, the LV scope and certifications also standardize. Bidding the Arlington job well positions a contractor to be invited back for McKinney, future Texas StrideCare locations, and likely the Coastal Vascular partnership rollouts announced in July 2025. Vascular and podiatry care is one of the fastest-growing outpatient verticals in the country, and the operating model — small footprint, high procedure volume, full LV stack — is exactly the project type that rewards contractors who specialize.

The broader signal: the post-acute and outpatient surgery center segment is where healthcare construction money is flowing, even as large hospital tower projects slow. Arlington and the I-30 / 287 corridor in southwest Tarrant County are absorbing a meaningful share of that capital.
