Milwaukee M12 FUEL Installation Drill 2505-22 Review: The 4-in-1 Drill Built for Tight Spaces

Disclosure: This post contains affiliate links. We may earn a commission at no extra cost to you if you make a purchase through these links.

Quick Verdict

The Milwaukee M12 FUEL Installation Drill/Driver Kit (2505-22) is a compact, modular powerhouse that earns its spot in the tool pouch of low voltage technicians and installers. With 300 in-lbs of torque, four interchangeable heads, and a brushless POWERSTATE motor in a body just 5.12 inches long, this tool fills a specific niche: getting into spaces where standard drills simply can't reach. It's not a replacement for your main drill—but it was never meant to be.

Rating: 4.2/5

Check Current Price on Amazon →

Who This Is For (And Who Should Skip It)

Ideal for:

• Low voltage technicians working in telecom closets and cable trays
• HVAC installers mounting equipment in tight mechanical spaces
• Cabinet installers and finish carpenters who need right-angle access
• Electricians doing trim work and device installation
• MRO professionals handling facility maintenance

Skip it if:

• You need to drill through multiple studs during rough-in work
• Your primary work involves heavy-duty fastening like deck screws
• You're looking for an all-in-one drill to replace your main driver
• Budget is tight and you don't regularly work in confined spaces

Key Features That Actually Matter

4-in-1 Modular Head System

The heart of what makes the 2505-22 special is its modular head system. You get four dedicated attachments:

• 3/8" Metal Chuck: Standard drilling capability for pilot holes and small bits
• 1/4" Hex Driver: Quick bit changes for standard driving tasks
• Offset Attachment: Access to flush-mounted screws and tight corners
• Right Angle Attachment: 90-degree drilling and driving for access behind equipment

Each head can attach in 16 different positions, letting you dial in exactly the angle you need. When you're lying on your back in a drop ceiling trying to secure a cable tray bracket, that flexibility matters more than raw power specs.

POWERSTATE Brushless Motor

The brushless motor delivers 300 in-lbs of torque and 1,600 RPM—sufficient for installation work without the bulk. Milwaukee's REDLINK PLUS intelligence protects against overload, overheating, and over-discharge, which extends both tool and battery life during extended use.

Compact Form Factor

At 5.12 inches long and just 2 pounds with a battery, this drill fits into spaces where your M18 or 20V Max simply won't. The inline grip design keeps your hand and wrist in a natural position during extended overhead work, and the flat top of the tool lets you set it flush against surfaces for added stability.

Real-World Performance

After spending time with the M12 Installation Drill across various job site scenarios, here's what stood out:

In the telecom closet: When mounting patch panels and securing cable management, the offset head lets you drive screws right up against the rack frame where a standard driver would require awkward angles. The magnetic bit holder on the front of the tool keeps spare bits within reach—no more digging through pockets mid-task.

Working above drop ceilings: The lightweight body reduces arm fatigue during overhead work. When securing J-hooks or mounting access points, the right-angle attachment gets into spaces between structural elements that would otherwise require a flex shaft or different tool entirely.

Cabinet and trim work: The 16-position head adjustment lets you approach screws from angles that keep your knuckles away from adjacent surfaces. The inline grip feels more like a precision screwdriver than a drill, which translates to better control on finish work.

The ergonomic quirk: The reversing switch sits on top of the tool body rather than near the trigger. If you're constantly switching between driving and backing out screws, this placement requires two hands to flip—one of the few design decisions that doesn't favor one-handed operation.

What I Like (Pros)

• Genuine access advantage: The offset and right-angle heads aren't gimmicks—they solve real problems in confined workspaces
• Comfortable for all-day use: The inline grip and light weight reduce fatigue during repetitive installation tasks

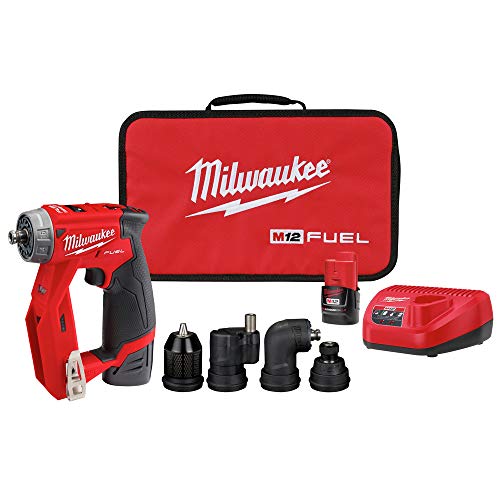

• Quality kit contents: Two CP2.0 batteries, charger, belt clip, and a compartmentalized bag that actually keeps attachments organized
• Brushless durability: The FUEL motor should outlast brushed alternatives with regular use
• M12 ecosystem compatibility: If you're already invested in Milwaukee's 12V platform, this shares batteries with dozens of other tools
• Magnetic bit holder: Keeps spare bits on the tool body for quick changes

What Could Be Better (Cons)

• Awkward reverse switch: Top-mounted direction switch requires two hands to change, interrupting one-handed operation
• Premium pricing: At $229 for the kit ($179 bare tool), it's expensive for what some see as a specialty tool
• Not for heavy drilling: 300 in-lbs won't power through multiple studs or drive large fasteners—this is installation work only
• Unique form factor: The "brass knuckle" design takes adjustment; some find it awkward at first
• Attachment storage: Extra heads need to live in the bag—there's no on-tool storage for unused attachments

Specifications Table

Specification	Value
Max Torque	300 in-lbs
No-Load Speed	0-1,600 RPM
Motor Type	POWERSTATE Brushless
Chuck Size	3/8" (with chuck attachment)
Tool Length	5.12 inches
Weight (with battery)	2.0 lbs
Battery Platform	M12 REDLITHIUM
Head Positions	16 positions (4 heads × 4 orientations)
Kit Batteries Included	(2) CP2.0 Battery Packs
Warranty	5-Year Tool / 2-Year Battery

Is It Worth the Price?

At $229 for the complete kit, the Milwaukee M12 Installation Drill sits at the premium end for 12V drill/drivers. The question is whether the modular head system justifies the cost over a standard compact drill.

The math works if:

• You regularly work in confined spaces where standard drills can't reach
• You're already on the M12 platform and value battery compatibility
• You spend time on finish/installation work where the offset and right-angle heads solve real problems

Consider alternatives if:

• Tight-space work is occasional—a flexible shaft extension might suffice
• You need more raw power for drilling tasks
• Budget is a primary concern and you can work around access limitations

For low voltage technicians specifically, the ability to secure J-hooks, mount access points, and install cable management in cramped ceiling spaces makes this a tool that pays for itself in time saved and frustration avoided.

How Does It Compare?

Feature	Milwaukee M12 2505-22	Makita 12V CXT	DeWalt Atomic 12V
Modular Heads	4-in-1 (16 positions)	Standard only	Standard only
Max Torque	300 in-lbs	275 in-lbs	250 in-lbs
Weight	2.0 lbs	1.8 lbs	2.1 lbs
Kit Price	~$229	~$159	~$99
Best For	Installation/tight spaces	Compact general use	Budget-friendly entry

Milwaukee's M12 line is widely considered the leader in the 12V market, with the broadest tool selection and battery ecosystem. If tight-space access isn't a priority, the Makita CXT offers superior compactness at a lower price, while DeWalt Atomic provides solid value for budget-conscious buyers.

The Bottom Line

The Milwaukee M12 FUEL Installation Drill 2505-22 isn't trying to be your only drill—and that's the point. It's a specialized tool that solves specific problems better than any standard drill can.

If your work regularly takes you into telecom closets, above drop ceilings, behind equipment racks, or into other confined spaces, this 4-in-1 modular system will earn its keep. The offset and right-angle heads aren't marketing fluff—they're practical solutions that save time and reduce the contortions required to drive fasteners in awkward spots.

Is it worth $229? For professionals who hit these scenarios daily, absolutely. For weekend warriors or those with occasional tight-space needs, the premium might be harder to justify. But if you've ever found yourself wishing your drill could bend around a corner, Milwaukee built this tool for you.

Check Current Price on Amazon →

Frequently Asked Questions

Can the Milwaukee M12 Installation Drill replace my main drill?

No—and it's not designed to. With 300 in-lbs of torque, it handles installation and fastening work well, but it won't power through rough-in drilling, multiple studs, or heavy fastening tasks. Think of it as a complement to your main driver, not a replacement.

Is the M12 FUEL Installation Drill good for low voltage work?

It's excellent for the finish and installation side of low voltage work—mounting J-hooks, securing cable management, installing access points and panels. The right-angle and offset heads are particularly useful in telecom closets and above drop ceilings. For drilling penetrations through studs, you'll still want your standard drill.

What batteries work with the 2505-22?

Any M12 REDLITHIUM battery works with this tool. The kit includes two CP2.0 batteries, but many professionals upgrade to the 4.0 Ah or 6.0 Ah High Output batteries for extended runtime. If you're already in the M12 ecosystem, you likely have compatible batteries already.

How does the modular head system hold up over time?

The attachment system uses a spring-loaded collar that's proven durable in professional use. The heads lock securely with minimal play, and the metal construction should outlast lighter-duty alternatives. Milwaukee's 5-year tool warranty covers defects if issues arise.
