Fluke FI2-7000 FiberInspector Pro Review: Automated Certification Done Right

Affiliate disclosure: This post contains affiliate links. If you purchase through these links, we may earn a commission at no extra cost to you.

Quick Verdict

The Fluke Networks FI2-7000 FiberInspector Pro delivers what contractors bidding large fiber projects actually need: automated IEC 61300-3-35 pass/fail certification with professional reporting. At roughly $4,800, it's a serious investment, but the 1-2 second automated inspection, LinkWare integration, and Versiv platform expandability justify the cost for shops doing regular certification work.

Rating: 4.5/5 — The gold standard for contractors who need documented fiber end-face certification for customer deliverables.

Who This Is For (And Who Should Skip It)

Buy this if you:

• Bid on data center, enterprise, or telco fiber projects requiring certification documentation
• Need IEC 61300-3-35 compliant pass/fail reports for customer acceptance
• Already own or plan to invest in the Versiv platform (DSX-5000, CertiFiber Pro, OptiFiber Pro)
• Manage multiple techs and need cloud-based result tracking via LinkWare Live
• Want to eliminate subjective visual inspection disputes with customers

Skip this if you:

• Only do occasional fiber work—a basic scope or the FI-500 will handle visual inspection
• Don't need documented certification reports (internal maintenance, troubleshooting)
• Are on a tight budget—at $4,800+ it's a significant capital expenditure
• Primarily work with MPO arrays (you'll want the FI2-7300 FiberInspector Ultra instead)

Key Features That Actually Matter

1-2 Second Automated Pass/Fail Certification

This is the core value proposition. Instead of staring at a fiber end-face and making a subjective judgment call—which inevitably leads to disputes with customers or callbacks—the FI2-7000 applies the IEC 61300-3-35 criteria algorithmically. You get a definitive PASS or FAIL within 1-2 seconds, color-coded defect mapping included.

For high-volume certification work, this speed adds up dramatically. A shop testing 200+ fiber cores per day reported saving thousands annually just on reduced inspection time.

IEC 61300-3-35 Standards Compliance

The FI2-7000 certifies to the IEC 61300-3-35 standard, which defines specific pass/fail criteria based on defect size and location across four zones. Zone A (the core) has the most stringent requirements; contamination in outer zones C and D doesn't necessarily cause a failure if it won't impact signal transmission.

The 2022 edition of the standard actually simplified some criteria, recognizing that a defect failing inspection might still pass optical performance tests. The FI2-7000's automation handles these nuances—you don't need to memorize zone boundary specifications.

Versiv Platform Integration

Built on the Versiv 2 mainframe, the FI2-7000 isn't a standalone tool—it's part of a modular ecosystem. The same mainframe can accept CertiFiber Pro (OLTS), OptiFiber Pro (OTDR), and DSX copper certification modules. For shops doing both copper and fiber testing, this consolidation reduces equipment investment and training overhead.

All results—copper certification, fiber loss, OTDR traces, and end-face inspection—can be combined into a single LinkWare report. That's powerful for customer deliverables.

LinkWare Live Cloud Integration

The integrated Wi-Fi uploads results directly to LinkWare Live from the job site. Project managers can monitor testing progress in real-time from their phone, while techs in the field don't have to physically deliver test data to the office. For multi-site projects with distributed teams, this visibility is invaluable.

LinkWare PC then generates the professional certification reports customers expect. The workflow goes: test in field → auto-upload → PM reviews → generate report → customer acceptance.

ProjX Management System

The Taptive interface includes ProjX, which defines job requirements upfront: what gets tested, to what standards, in what order. This prevents the common problem of techs completing 90% of testing only to realize they missed required measurements. With ProjX tracking, you know immediately if any cable is missing test data before you leave the site.

Real-World Performance

In a 500-cable data center project, the automated pass/fail removed all ambiguity. Previously, visual inspection led to back-and-forth with the customer about whether marginal end-faces should pass. With IEC certification, the standard is the standard—it either passes or it doesn't. That alone eliminated hours of discussion and callbacks.

The 11-hour battery life (with inspection probe attached) covered full work days without charging anxiety. For a team working long shifts on a new build, not having to swap batteries mid-day kept the workflow continuous.

The probe's 0.5 micron detection sensitivity catches contamination you'd miss with the naked eye. On one troubleshooting call, what looked like a clean connector under visual inspection showed microscopic debris in Zone A that was causing intermittent errors. The automated inspection caught it immediately.

LinkWare Live made multi-site coordination practical. A regional contractor running crews at three simultaneous locations could see test progress from each site without phone calls or end-of-day report uploads. When one site fell behind schedule, they knew it in real-time and could reallocate resources.

The color-coded defect highlighting simplifies tech training. Red failures and green passes are unambiguous, and the graphical overlay shows exactly where the contamination or damage is located. New techs don't need extensive fiber inspection experience to interpret results correctly.

What I Like (Pros)

• 1-2 second automated pass/fail eliminates subjective inspection disputes with customers
• IEC 61300-3-35 certification creates legally defensible documentation for acceptance testing
• Versiv platform modularity allows copper, OLTS, OTDR, and inspection from one mainframe
• LinkWare Live cloud integration enables real-time project tracking and simplified reporting
• 11-hour battery life handles full work days without mid-shift charging
• 0.5 micron detection sensitivity catches contamination invisible to the eye
• ProjX management prevents missed tests by tracking required measurements per job
• Color-coded defect mapping simplifies interpretation for all skill levels

What Could Be Better (Cons)

• At ~$4,800, the price is a significant barrier for small shops or occasional use
• Requires Versiv mainframe—not a standalone unit, so initial investment is higher if you don't already own Versiv
• MPO inspection requires additional FI2-7300 or separate MPO adapter—base unit is single-fiber only
• APC tips sold separately from the base kit
• Learning curve for LinkWare software—powerful but requires setup time to configure projects properly
• Wi-Fi upload requires decent cellular/Wi-Fi coverage on site—remote locations may need to sync later

Specifications

Specification	Value
Inspection Time	1-2 seconds automated pass/fail
Certification Standard	IEC 61300-3-35
Probe Resolution	2 megapixels
Min Detectable Particle	0.5 microns
Light Source	Blue LED
Field of View	425 x 320 microns
Probe Dimensions	6.75 x 1.5 in (175 x 35 mm)
Probe Weight	200g
Mainframe Dimensions	2.6 x 5.3 x 11.0 in
Mainframe Weight	3 lbs 5 oz (1.28 kg)
Battery	Lithium-ion, 7.2V
Battery Life	11 hours with probe
Charge Time	4-6 hours to 90%
Wi-Fi	802.11 a/b/g/n dual-band
Operating Temp	-18C to +45C

What's In the Box?

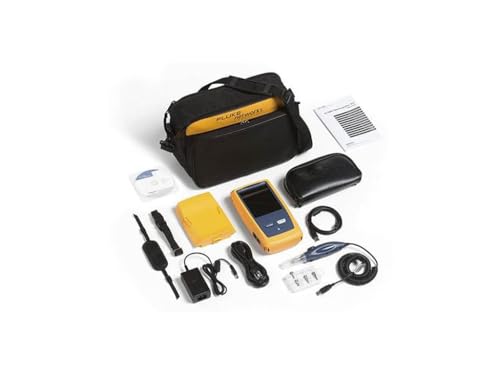

The FI2-7000 FiberInspector Pro kit includes:

• Versiv 2 Mainframe with integrated Wi-Fi
• USB Fiber Inspection Video Probe
• 4 UPC tips: LC, FC/SC bulkhead, 1.25mm universal, 2.5mm universal
• Blank module (mainframe rear connector protection)
• AC charger
• Shoulder strap
• USB interface cable
• Soft carrying case
• Getting started guide

Is It Worth the Price?

At roughly $4,800 (or more with MPO kit), the FI2-7000 is positioned for professional contractors who bid certification work regularly. The ROI calculation depends on your business model:

High-volume certification shops: If you're testing hundreds of fiber cores monthly and currently using manual inspection, the time savings alone can justify the investment within a year.

Shops bidding enterprise/data center projects: Many RFPs now require IEC 61300-3-35 certification documentation. Without automated inspection, you either can't bid these jobs or you're taking liability risk on manual inspection reports.

Versiv platform users: If you already own DSX-5000 or CertiFiber Pro, the inspection module leverages your existing investment.

Occasional fiber work: For shops doing fiber inspection once or twice a month, the FI-500 at roughly half the price handles visual inspection without the automation.

The Bottom Line

The Fluke Networks FI2-7000 FiberInspector Pro is the right tool for contractors who need defensible, standards-compliant fiber end-face certification. The 1-2 second automated pass/fail, IEC 61300-3-35 compliance, and LinkWare reporting integration solve real business problems: customer disputes, documentation requirements, and multi-site project management.

It's not a tool for everyone. The price and Versiv platform requirement make it overkill for occasional inspection work. But for shops bidding enterprise fiber projects or managing high-volume certification work, the FI2-7000 represents professional-grade capability that pays for itself.

Check Current Price on Amazon →

Frequently Asked Questions

What's the difference between the FI2-7000 and FI-7000?

The FI2-7000 is the Version 2 release built on the Versiv 2 platform with integrated Wi-Fi. The original FI-7000 used the first-generation Versiv mainframe. Performance is similar, but FI2-7000 includes newer firmware with enhanced pass/fail grading.

Can I use the FI2-7000 for MPO/MTP connector inspection?

With the MPO adapter tip (included in FI2-7000-MPO kit or available separately), you can inspect individual fibers within an MPO connector. For row-based MPO inspection, the FI2-7300 FiberInspector Ultra is the better choice.

Do I need to buy a Versiv mainframe separately?

No. The FI2-7000 kit includes a Versiv 2 mainframe. However, if you already own a Versiv mainframe, you may be able to purchase just the inspection module and probe.

How does the FI2-7000 compare to EXFO inspection probes?

EXFO's P5000i and FIP-500 offer similar automated IEC pass/fail capabilities. The choice often comes down to existing equipment ecosystem—if you're already using Fluke Versiv, the FI2-7000 integrates seamlessly.
