Edged ORD01-2 Aurora Low-Voltage Watchlist

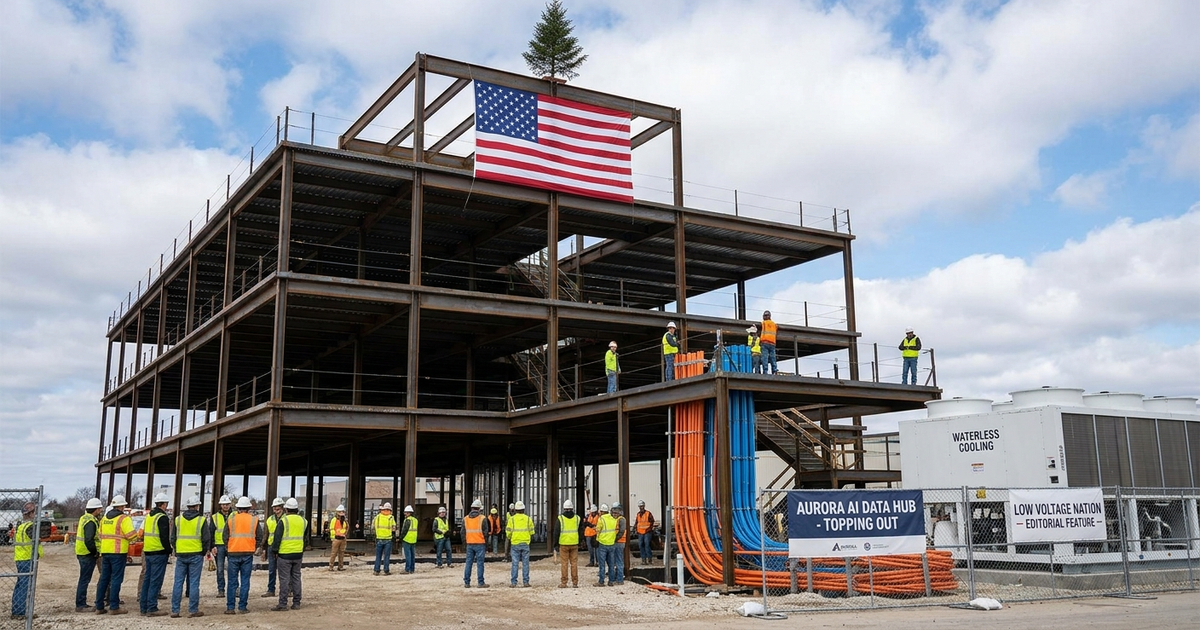

Edged Chicago ORD01-2 is now a live construction-stage AI data-center signal in Aurora, Illinois. In its June 2026 topping-out announcement, Edged US said the structural framework is complete for the second facility on the Edged Chicago campus. The building is fully pre-leased, designed for high-density AI training and inference workloads, and expected to deliver 72 MW of critical capacity when it becomes operational in Q2 2027.

The location is not vague. Edged's campus page places Edged Chicago at 2835 Bilter Road in Aurora, with 96 MW of total critical load across more than 65 acres. The campus breakdown lists ORD01-1 at 24 MW and ORD01-2 at 72 MW, with ORD01-2 described as single-story construction that can be split into two facilities. For low-voltage contractors, the important detail is that the campus page does not stop at capacity. It names the systems that shape the eventual field scope: multiple fiber providers, four diverse points of entry, meet-me rooms, an on-site substation, redundant power distribution, biometric access, CCTV, smoke detection, pre-action fire protection, and continuous monitoring through a secure DCIM platform.

The project also has a construction-side trail. Edged's November 2025 groundbreaking release identified FCL Builders as the construction partner for the second Aurora facility and said the building was being built for high-density AI workloads with closed-loop, waterless cooling from ThermalWorks. The newer topping-out release keeps FCL in the construction story and puts the project on a Q2 2027 operations track. FCL Builders' Edged project page confirms an Edged data-center project in Aurora, Illinois, under its mission-critical portfolio. That FCL page describes a 207,967-square-foot, two-story shell with 36 MW of critical load and future substation infrastructure, so LVN should use Edged's official sources for the ORD01-2 72 MW facility details while still treating FCL as source-backed construction evidence for the Aurora account.

ThermalWorks adds the cooling and power-density context. Its Edged Chicago release says the 96 MW campus uses waterless cooling, is expected to save nearly 380 million gallons of water per year at full buildout compared with conventional data centers, and supports up to 70 kW per rack with air cooling and 200 kW per rack with plug-and-play liquid-cooling integration. Edged's own topping-out release gives a project-specific water claim for ORD01-2: more than 277 million gallons of annual water savings versus conventional data centers. Those numbers matter because cooling, power, controls, monitoring, and commissioning are not separate from the low-voltage story on AI facilities. They shape pathways, networked systems, alarms, access rules, turnover records, and the schedule pressure around final commissioning.

Project Snapshot

Item	Public Evidence	LVN Takeaway
Project	Edged Chicago ORD01-2, second facility on the Edged Chicago campus.	A construction-stage Aurora data-center account with official owner, campus, contractor, and cooling evidence.
Location	2835 Bilter Road, Aurora, Illinois 60502.	Local permitting, utility, fire/life-safety, fiber-route, and inspection records are worth watching by address and alias.
Capacity	ORD01-2 is listed at 72 MW; Edged Chicago totals 96 MW.	The scale supports serious fiber, security, controls, fire alarm, networking, DAS, grounding, and commissioning scope.
Status	Edged says the second facility has topped out and construction continues.	Specialty packages can surface after shell milestones, through subcontractor signals, permits, jobs, and commissioning activity.
Schedule	Edged targets Q2 2027 operation for the second facility.	2026 and early 2027 should be watched for trade movement, utility work, inspections, and closeout requirements.
Tenant	Edged says the facility is fully pre-leased but does not name the customer.	Do not label the tenant until Edged or another primary source confirms it.

Named Companies And Public Roles

Company / Agency	Public Role	Evidence
Edged US	Owner/operator/developer of the Edged Chicago campus and ORD01-2 facility.	June 2026 topping-out release and campus page.
Endeavour	Parent infrastructure platform behind Edged.	Edged source material and site footer identify Edged as an Endeavour company.
FCL Builders	Construction partner / mission-critical builder tied to the Aurora account.	Edged groundbreaking and topping-out releases; FCL project page.
ThermalWorks	Waterless cooling system provider for the Edged Chicago campus.	Edged source material and ThermalWorks campus release.
ComEd	Local electric utility context for the campus.	ThermalWorks campus release names ComEd in the power context.
City of Aurora, Illinois	Municipal host and local partner.	Edged November 2025 release quotes continued partnership with Aurora.

The named list is useful, but the unnamed list is where LVN readers should be disciplined. No reviewed source names the electrical contractor, low-voltage contractor, fiber/OSP contractor, structured cabling contractor, security/access-control/CCTV integrator, fire alarm contractor, BMS/BAS controls integrator, DAS/networking contractor, grounding/bonding specialty team, or commissioning agent for ORD01-2. FCL is source-backed at the construction-partner level. ThermalWorks is source-backed for cooling. ComEd is source-backed as utility context. Anything beyond that needs a source before it becomes a public claim.

The stage of the build changes the type of evidence that matters. A topping-out milestone means the project has moved past pure announcement tracking, but it does not mean the technology packages are fully visible to the public. Low-voltage names can appear through later interior permits, subcontractor prequalification updates, job postings, supplier case studies, inspection records, or commissioning language rather than through a splashy press release. For ORD01-2, the best search terms are not only the brand names. They include the address, ORD01-2, Edged Chicago, Edged Aurora, 72 MW, 2835 Bilter Road, FCL Builders, waterless cooling, ThermalWorks, ComEd service, and Aurora data-center permits.

There is also a sequencing lesson here for contractors. AI data centers get covered first as power, water, cooling, and compute stories. The field reality is that low-voltage teams have to work inside that same pressure. Fiber entrances have to coordinate with carriers and site civil work. Security systems have to coordinate with the perimeter and operations rules. Fire alarm interfaces have to coordinate with suppression, detection, AHJs, and monitoring. BAS and DCIM-related pathways have to coordinate with cooling and electrical systems. Commissioning has to tie all of it into clean documentation. The companies that are ready before the package names surface usually have better odds than the companies that wait for a headline.

That makes the watchlist practical. Search and monitor for Edged Chicago, Edged Aurora, ORD01-2, 2835 Bilter Road, Edged Energy, Endeavour, ThermalWorks, FCL Builders, and Aurora data center records. FCL also provides an external subcontractor prequalification path, which is useful for understanding how trade access may appear without pretending a package award has been announced. For a contractor, the best early work is account mapping: who owns the campus, who leads construction, which public records use which address, how the utility work is described, and whether specialty package names surface in permit, prequal, supplier, or job-posting language.

Where Low Voltage Shows Up

Scope	Why It Matters	Evidence To Watch
Fiber / OSP	Edged lists multiple fiber providers, four diverse points of entry, and meet-me rooms.	Carrier clues, duct banks, vaults, utility crossings, campus entrances, and fiber testing requirements.
Structured cabling	AI-ready data halls depend on clean pathways, tray coordination, labeling, testing, and closeout records.	Interior buildout packages, rack/row scope, pathway drawings, cable tray, QA records, and as-builts.
Security systems	The campus page names perimeter fencing, exterior gates, biometric readers, ID badges, and CCTV.	Security integrator awards, access-control jobs, camera/VMS work, badging systems, and turnover testing.
Fire alarm / life safety	Edged lists smoke detection and data-hall double-interlock pre-action mist systems.	Fire alarm permits, AHJ inspections, interface testing, monitoring setup, and suppression coordination.
BMS / BAS controls	Waterless cooling, redundant power, real-time metering, and DCIM monitoring create controls integration work.	Controls integrator roles, trend logs, alarms, sequence documentation, and commissioning scripts.
DAS / networking	Large secure buildings need in-building wireless, operations networks, and IT/OT coordination.	Public-safety coverage, DAS design, network gear, facility-system VLANs, and acceptance testing.
Grounding / bonding	Telecom spaces, pathways, racks, security gear, and equipment rooms need disciplined bonding.	Grounding tests, electrical coordination, pathway inspections, QA documentation, and commissioning checklists.

The skills angle is straightforward. ORD01-2 is not a generic warehouse cabling job. The campus is purpose-built for high-density AI workloads, redundant power, waterless cooling, strict security, fire protection, and continuous monitoring. Low-voltage crews should expect site orientation, PPE, lift planning, badging, lockout coordination, labeling rules, clean test records, commissioning-ready documentation, and careful interface work with electrical, mechanical, cooling, security, and fire/life-safety teams.

Jobs, Skills, And Contractor Readiness

Skill Area	Why It Fits	Useful Resource
Fiber testing and documentation	Carrier entrances, MMRs, data halls, and commissioning all reward clean fiber handling and repeatable test records.	BICSI fiber training
Structured cabling discipline	Pathway, labeling, copper, fiber, as-built, and QA practices matter more as density rises.	BICSI copper training
Fiber workforce basics	Growing teams need shared basics around cleaning, testing, labeling, safety, and standards.	FOA workforce resources
Site safety and access	Mission-critical construction requires orientations, PPE, lift discipline, badging, and strong closeout habits.	OSHA outreach training

The conservative read is the useful read. Edged ORD01-2 is source-backed, under construction, topped out, fully pre-leased, and aimed at Q2 2027 operation. The campus facts point directly at fiber, OSP, structured cabling, security, fire alarm, BAS/BMS, DAS/networking, grounding, documentation, and commissioning work. The specialty contractor names are not public yet. That is why the project belongs on the LVN low-voltage watchlist now, while the public evidence is still forming.

LVN Signal is tracking Edged Chicago ORD01-2 as part of the AI/data-center construction intelligence layer so contractors, vendors, recruiters, and techs can follow source-backed company names, public records, job signals, and low-voltage scope movement while the opportunity is still early enough to matter.
